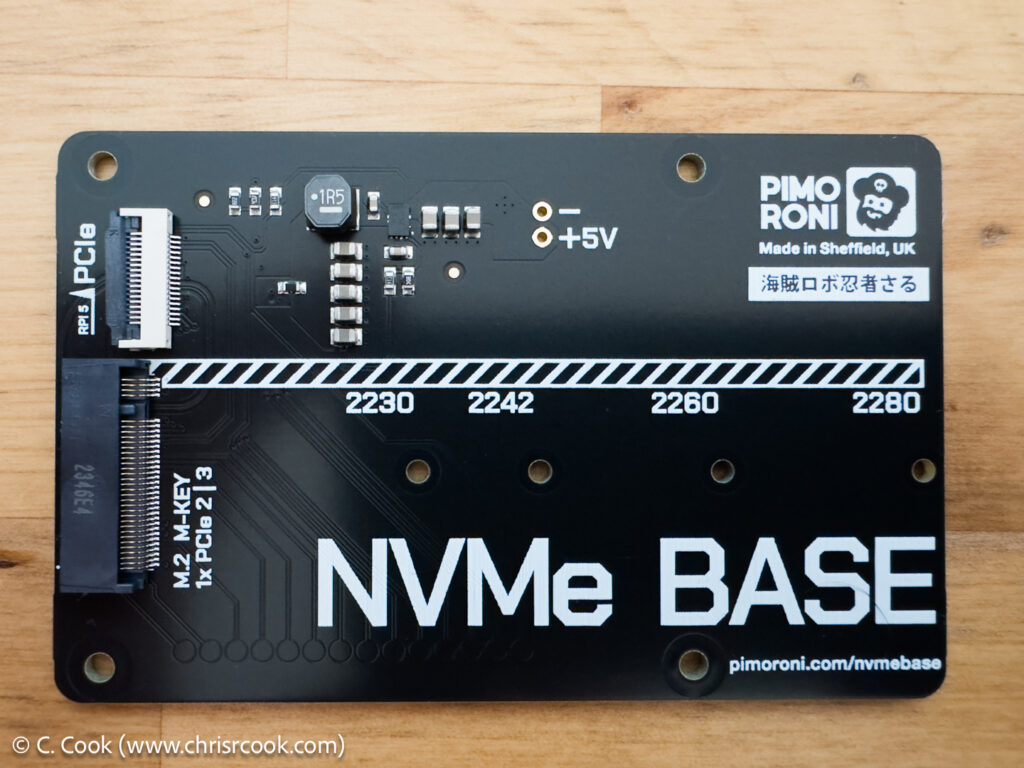

A little later than expected – and, oddly, after my NVMe Duo – I’ve finally managed to get my Pimoroni NVMe Base mounted to a Raspberry Pi 5 and get an OS installed.

Like last time, this is the output of lspci -nnvmm. Unlike last time, however, it is quite clear that the single drive NVMe base connects directly to the Raspberry Pi 5’s single user accessible PCIe 2 lane without the intermediation of a PCIe switch.

user@p5:~ $ sudo lspci -nnvmm
Slot:	00:00.0
Class:	PCI bridge [0604]
Vendor:	Broadcom Inc. and subsidiaries [14e4]
Device:	Device [2712]
Rev:	21
ProgIf:	00

Slot:	01:00.0
Class:	Non-Volatile memory controller [0108]
Vendor:	Sandisk Corp [15b7]
Device:	WD Blue SN580 NVMe SSD (DRAM-less) [5041]
SVendor:	Sandisk Corp [15b7]
SDevice:	WD Blue SN580 NVMe SSD (DRAM-less) [5041]
Rev:	01
ProgIf:	02

Slot:	0001:00:00.0
Class:	PCI bridge [0604]
Vendor:	Broadcom Inc. and subsidiaries [14e4]
Device:	Device [2712]
Rev:	21
ProgIf:	00

Slot:	0001:01:00.0
Class:	Ethernet controller [0200]
Vendor:	Vendor [1de4]
Device:	Device [0001]
ProgIf:	00
